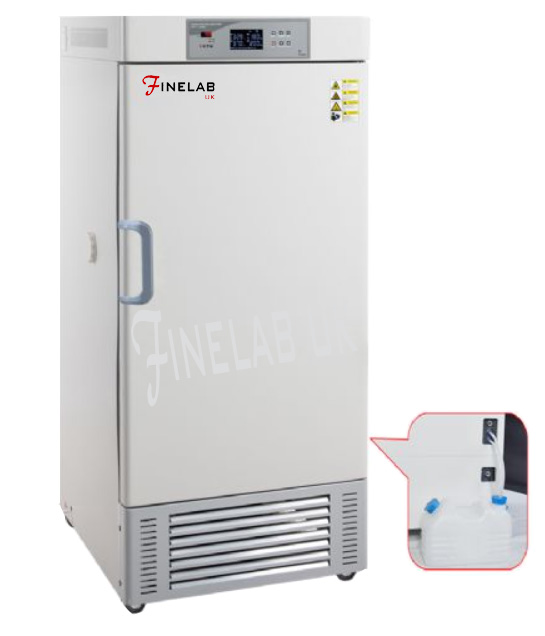

C series constant temperature and humility incubator can be widely used for aseptic test of drugs, textiles, food processing and sample stability test, raw material performance test, product packaging life test, etc.
Model | Model | CH-80P | CH-150P | CH-250P |
Model | Model | CH-80T | CH-150T | CH-250T |
Performance | Temperature range | without humidification:0~65°C, with humidification:10~65°C | without humidification:0~65°C, with humidification:10~65°C | without humidification:0~65°C, with humidification:10~65°C |
Performance | Temperature fluctuation | ±0.5°C | ±0.5°C | ±0.5°C |
Performance | Temperature resolution | 0.1°C | 0.1°C | 0.1°C |
Performance | Temperature uniformity | ±1°C | ±1°C | ±1°C |
Performance | Temperature accuracy | 1°C at (37°C) | 1°C at (37°C) | 1°C at (37°C) |
Performance | Humidity range | 35%~90%RH | 35%~90%RH | 35%~90%RH |
Performance | Humidity fluctuation | ±3% | ±3% | ±3% |
Performance | Humidity accuracy | ±3% | ±3% | ±3% |
Performance | Ambient Temp. | 5~35°C | 5~35°C | 5~35°C |
Structure | Rated power | 600W | 800W | 1000W |
Structure | Compressor | Air~cooled hemetic compressor | Air~cooled hemetic compressor | Air~cooled hemetic compressor |
Structure | Refrigerant | R134a | R134a | R134a |
Structure | Defrosting System | Double evaporator operation, no freezing | Double evaporator operation, no freezing | Double evaporator operation, no freezing |
Structure | Humidity Control | Automatic | Automatic | Automatic |
Structure | Water Supply | Automatic | Automatic | Automatic |
Structure | Testing Hole | Inner diameter ?52mm*1 | Inner diameter ?52mm*1 | Inner diameter ?52mm*1 |
Structure | Insulation Material | Sponge | Sponge | Sponge |
Controller | Controller | P:Large screen color LCD, T:Touch screen | P:Large screen color LCD, T:Touch screen | P:Large screen color LCD, T:Touch screen |
Controller | Control | 30 segments program control, T type (real time curve of temp. and humidity) | 30 segments program control, T type (real time curve of temp. and humidity) | 30 segments program control, T type (real time curve of temp. and humidity) |
Controller | Setting | P: LCD Display, T: Touch Screen LCD Display | P: LCD Display, T: Touch Screen LCD Display | P: LCD Display, T: Touch Screen LCD Display |
Controller | Sensor | PT100 | PT100 | PT100 |
Controller | Safety | Digital temperature limiter | Digital temperature limiter | Digital temperature limiter |
Specification | Inner (WXDXH MM) | 420x355x550 | 500x405x750 | 500x505x1000 |
Specification | Exterior (WXDXH MM) | 588x670x1210 | 668x720x1410 | 668x820x1660 |
Specification | Packing (WXDXH MM) | 734x794x1328 | 814x844x1528 | 814x944x1778 |
Specification | Capacity | 80L | 150L | 250L |
Specification | Shelf load bearing | 15KG | 15KG | 15KG |
Specification | Voltage | AC220V 50HZ | AC220V 50HZ | AC220V 50HZ |
Specification | N.W/G.W(KG) | 85/110 | 120/159 | 100/139 |
Specification | Shelf | 2 (Standard) | 2 (Standard) | 2 (Standard) |
Optional Configuration | Optional Configuration | Shelf,RS485 (T model standard), Printer, Recorder, Remote control, wireless SMS alarm, USB Port (T model standard) | Shelf,RS485 (T model standard), Printer, Recorder, Remote control, wireless SMS alarm, USB Port (T model standard) | Shelf,RS485 (T model standard), Printer, Recorder, Remote control, wireless SMS alarm, USB Port (T model standard) |
